Single custom line with Works360 manifold
Single custom line with Works360 manifold

Alternative Views:
Price: $167.00
Black Friday Now $133.60
You Save $33.40!



Availability:: Usually Ships in 3 to 5 Days
Product Code: S2CUSTOM

BRAKE LINE COLOR


BANJO / FITTING COLOR


LOGO TAG COLOR


L1 LENGTH (MASTER CYLINDER LINE)


L2 LENGTH (RIGHT CALIPER LINE)


L1 BEND ANGLE


L2 BEND ANGLE


BANJO BOLT KIT


WORKS360 OPEN PORT THREAD SIZE



Qty:
Description

Use the images below to choose the options needed for your race set up.

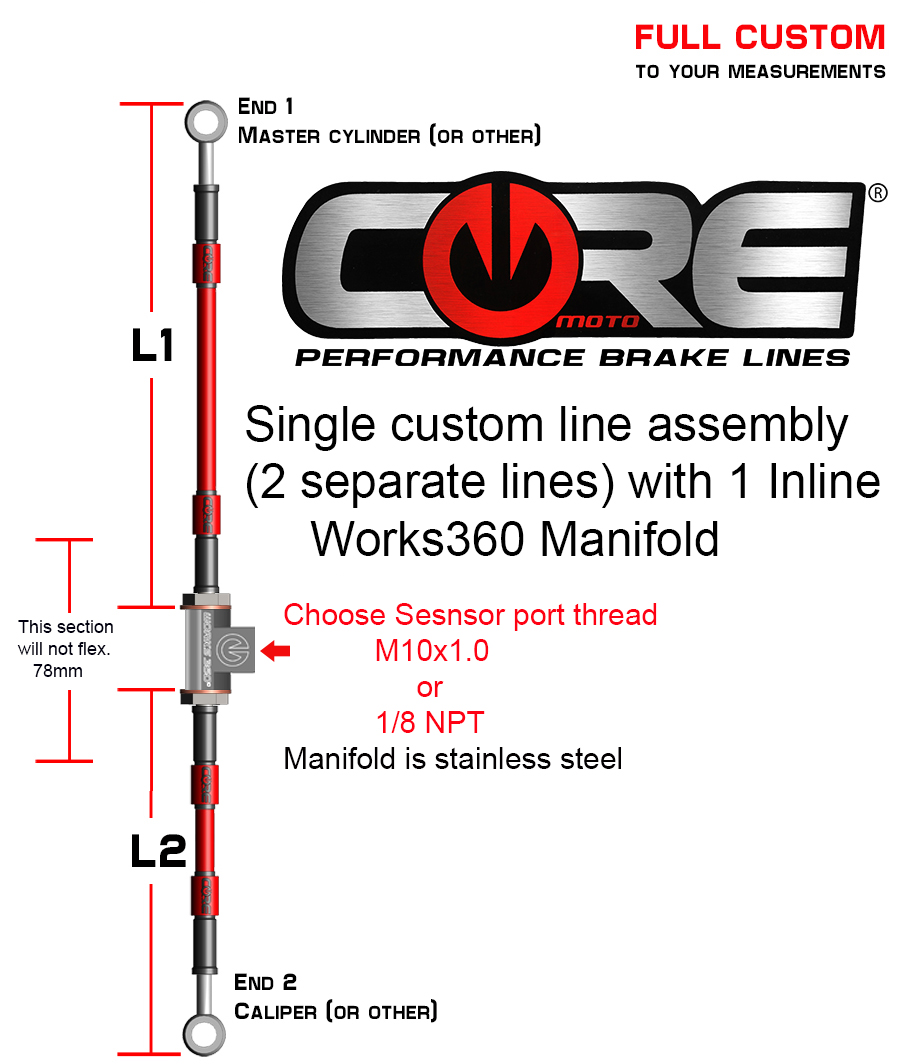

Each line kit will include 2 banjo bolts of your choice and 1 Works 360 manifold with either M10x1.0 or 1/8NPT threaded open port (square side)

L1: From the master cylinder banjo end to the end of the fitting that screws into the upper manifold port.

L2: From the Calier banjo end to the end of the fitting that screws into the lower manifold port.

In between these 2 lines will be the Works360 Manifold. The manifold will have 2 round M10x1.0 ports with flat surfaces for copper crush washer sealing and one open square port with flat surface for copper crush washer sealing. The open square port is available in M10x1.0 and 1/8 NPT threads.

When measuring to fit your bike, we suggest using coaxial cable or something of similar rigidity as it will best replicate a stainless braided brake hose. Use zip ties to hold the coaxial cable in place anywhere you will mount the brake line while dry measuring your bike.

For customer ease, we will assume measurements are to end fitting tips...not centers.

Take your time and keep reworking your measure until you have it dialed in. We can not make lines longer if they are too short.
We do not accept returns on brake lines.

If ordering through our online builder, your data will remain on file if you wish to order again.
